Tern

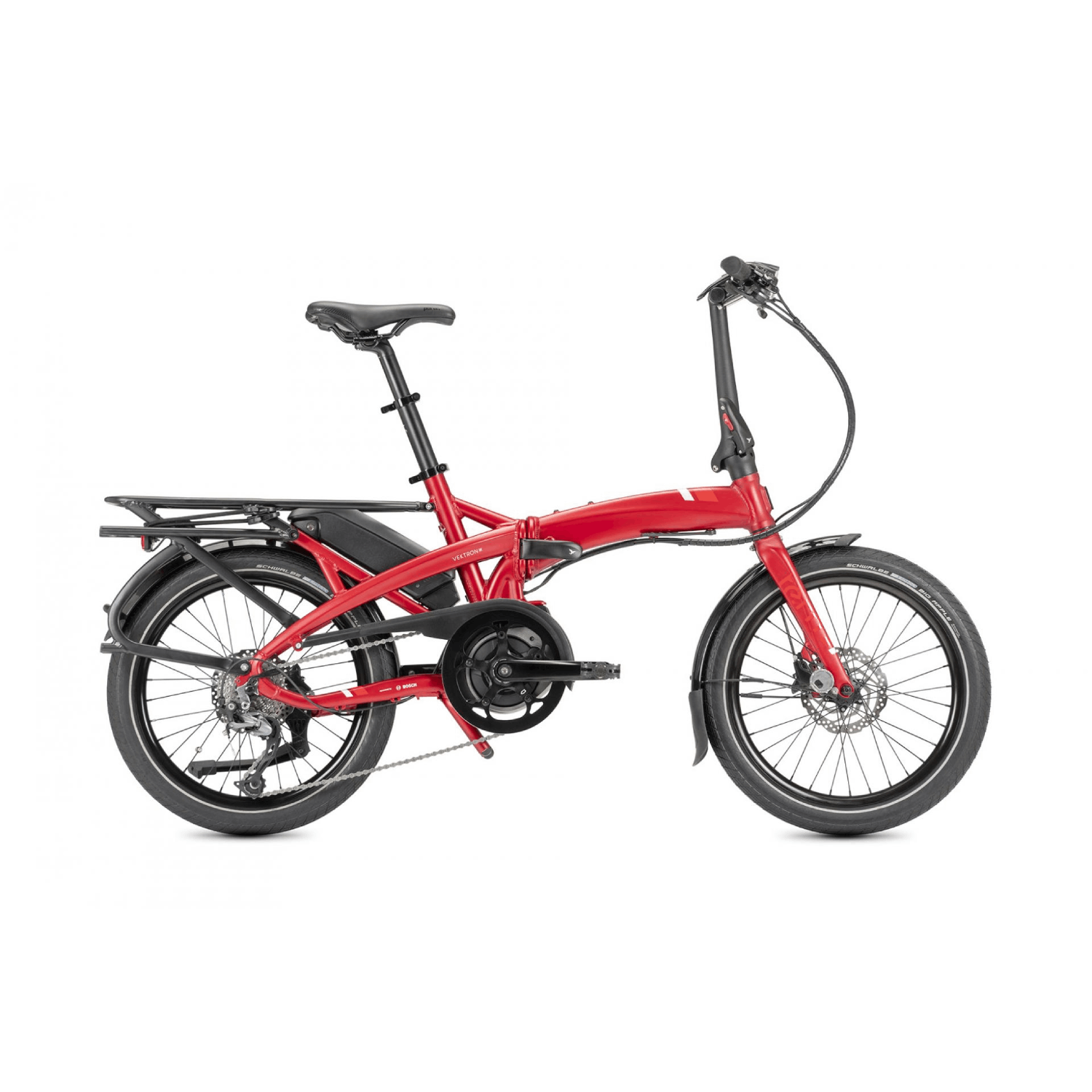

Tern Vektron Q9

Tern Vektron Q9

$4,699.00 NZD
$4,699.00 NZD
Sale Sold out
Shipping calculated at checkout.

Ride it, Fold it, Go Further

The Vektron is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. Shorten distances and flatten the hills on your commute, or put a couple of Vektrons in the trunk of your car on your next trip, so you can explore further.

Specifications Tern Vektron Q9

  • SPEEDS: 1 x 9
  • WEIGHT: 21.9 kg (48.3 lb)
  • GEAR INCHES: 33" - 97" (2.65 - 7.72 m)
  • FOLDING SIZE: 41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)
  • FOLDING TIME: 10 sec
  • FRAME SIZES: One size
  • DISTANCE: SEATPOST TO HANDLEBAR: 62 - 69 cm (24.4 - 27.2 in)
  • DISTANCE: SADDLE TO PEDAL: 67 - 110 cm (26.4 - 43.3 in)
  • SUGGESTED RIDER HEIGHT: 147 - 195 cm
  • MAX GROSS VEHICLE WEIGHT: 125 kg (275.6 lb)
  • MAX RIDER WEIGHT: 105 kg (231.5 lb)
  • FRAME: Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
  • FORK: Tern Tarsus, 6061-Al, hydroformed
  • HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
  • STEM: Tern Andros, adjustable, forged construction, patented technology
  • HEADSET: Tern Flux, cartridge bearings, Physis integrated
  • HANDLEBAR: Flat bar, 6061-AL, Tern Andros adapted
  • GRIPS/BAR TAPE: Velo ergonomic, lock-on
  • SADDLE: Tern Porter, patented GripPad design
  • SEATPOST: Tern Telescope, 34.9/30.9 mm, 2014-AL
  • SEATPOST CLAMP: Tern Collar, 6061-AL, 2pc
  • FRONT BRAKE: Shimano, hydraulic disc
  • REAR BRAKE: Shimano, hydraulic disc
  • BRAKE LEVERS: Shimano, hydraulic disc
  • BRAKE CABLE & HOUSING: Shimano, hydraulic disc
  • FRONT HUB: Shimano disc
  • REAR HUB: Shimano disc
  • SPOKES AND NIPPLES: Stainless steel
  • RIMS: Kinetix Comp, for disc
  • TYRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex
  • SHIFTER(S): Shimano Alivio, 1 x 9 spd, trigger
  • REAR DERAILLEUR: Shimano Alivio Shadow
  • CRANKSET: Vektron custom, forged 6061-AL crankarm
  • CASSETTE/FREEWHEEL: Shimano 11-32T, 9 spd
  • BOTTOM BRACKET: Motor integrated
  • CHAIN: 9 spd, DHT for eBike, GST corrosion resistant coating
  • PEDALS: MKS EZY
  • SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules
  • MOTOR: Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
  • BATTERY: Bosch PowerPack 400 Wh
  • DISPLAY: Bosch Purion, 4 mode selectable, walk assist
  • RANGE: 400 Wh: 55 -110 km (35-70 mi)
  • CHARGER: 220V, 4A (EU); 100-240V, 4A (US)
  • BELL: Aluminum
  • CHAINGUARD: SKS Chainblade
  • KICKSTAND: URSUS, rear mount
  • CLIP SYSTEM: Magnetix 3.0
  • LUGGAGE SOCKET: Yes
  • FRONT LIGHT: Tern Valo Direct, 190 lumens
  • REAR LIGHT: Herrmans H-Trace, for eBike
  • FENDERS: SplashGuard, stainless hardware
  • RACK(S): Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
.

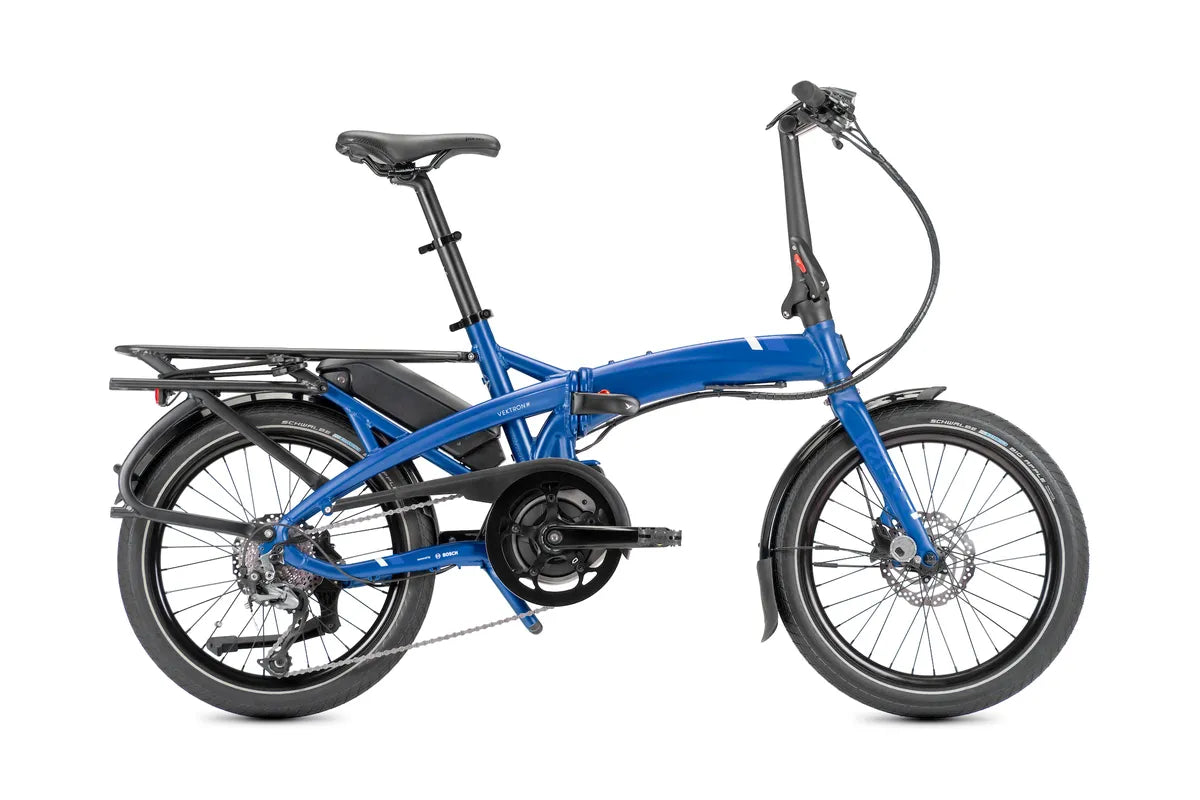

Colour

Out of stock
Make an Enquiry
View full details
#newbikeday: Any accessories purchased with a bike will automatically be discounted by 10%!

Shipping:

If you live outside of Auckland, we can send new bikes to your local bike shop who will fully assemble it for you to pick up.

Click & Collect

You can pick up 9am–6pm weekdays and 10am–4pm Saturdays. Most orders are ready within the hour.

About this product

Ride it, Fold it, Go Further

The Vektron is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. Shorten distances and flatten the hills on your commute, or put a couple of Vektrons in the trunk of your car on your next trip, so you can explore further.

Specifications Tern Vektron Q9

  • SPEEDS: 1 x 9
  • WEIGHT: 21.9 kg (48.3 lb)
  • GEAR INCHES: 33" - 97" (2.65 - 7.72 m)
  • FOLDING SIZE: 41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)
  • FOLDING TIME: 10 sec
  • FRAME SIZES: One size
  • DISTANCE: SEATPOST TO HANDLEBAR: 62 - 69 cm (24.4 - 27.2 in)
  • DISTANCE: SADDLE TO PEDAL: 67 - 110 cm (26.4 - 43.3 in)
  • SUGGESTED RIDER HEIGHT: 147 - 195 cm
  • MAX GROSS VEHICLE WEIGHT: 125 kg (275.6 lb)
  • MAX RIDER WEIGHT: 105 kg (231.5 lb)
  • FRAME: Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
  • FORK: Tern Tarsus, 6061-Al, hydroformed
  • HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
  • STEM: Tern Andros, adjustable, forged construction, patented technology
  • HEADSET: Tern Flux, cartridge bearings, Physis integrated
  • HANDLEBAR: Flat bar, 6061-AL, Tern Andros adapted
  • GRIPS/BAR TAPE: Velo ergonomic, lock-on
  • SADDLE: Tern Porter, patented GripPad design
  • SEATPOST: Tern Telescope, 34.9/30.9 mm, 2014-AL
  • SEATPOST CLAMP: Tern Collar, 6061-AL, 2pc
  • FRONT BRAKE: Shimano, hydraulic disc
  • REAR BRAKE: Shimano, hydraulic disc
  • BRAKE LEVERS: Shimano, hydraulic disc
  • BRAKE CABLE & HOUSING: Shimano, hydraulic disc
  • FRONT HUB: Shimano disc
  • REAR HUB: Shimano disc
  • SPOKES AND NIPPLES: Stainless steel
  • RIMS: Kinetix Comp, for disc
  • TYRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex
  • SHIFTER(S): Shimano Alivio, 1 x 9 spd, trigger
  • REAR DERAILLEUR: Shimano Alivio Shadow
  • CRANKSET: Vektron custom, forged 6061-AL crankarm
  • CASSETTE/FREEWHEEL: Shimano 11-32T, 9 spd
  • BOTTOM BRACKET: Motor integrated
  • CHAIN: 9 spd, DHT for eBike, GST corrosion resistant coating
  • PEDALS: MKS EZY
  • SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules
  • MOTOR: Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
  • BATTERY: Bosch PowerPack 400 Wh
  • DISPLAY: Bosch Purion, 4 mode selectable, walk assist
  • RANGE: 400 Wh: 55 -110 km (35-70 mi)
  • CHARGER: 220V, 4A (EU); 100-240V, 4A (US)
  • BELL: Aluminum
  • CHAINGUARD: SKS Chainblade
  • KICKSTAND: URSUS, rear mount
  • CLIP SYSTEM: Magnetix 3.0
  • LUGGAGE SOCKET: Yes
  • FRONT LIGHT: Tern Valo Direct, 190 lumens
  • REAR LIGHT: Herrmans H-Trace, for eBike
  • FENDERS: SplashGuard, stainless hardware
  • RACK(S): Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
