Tern Orox S12

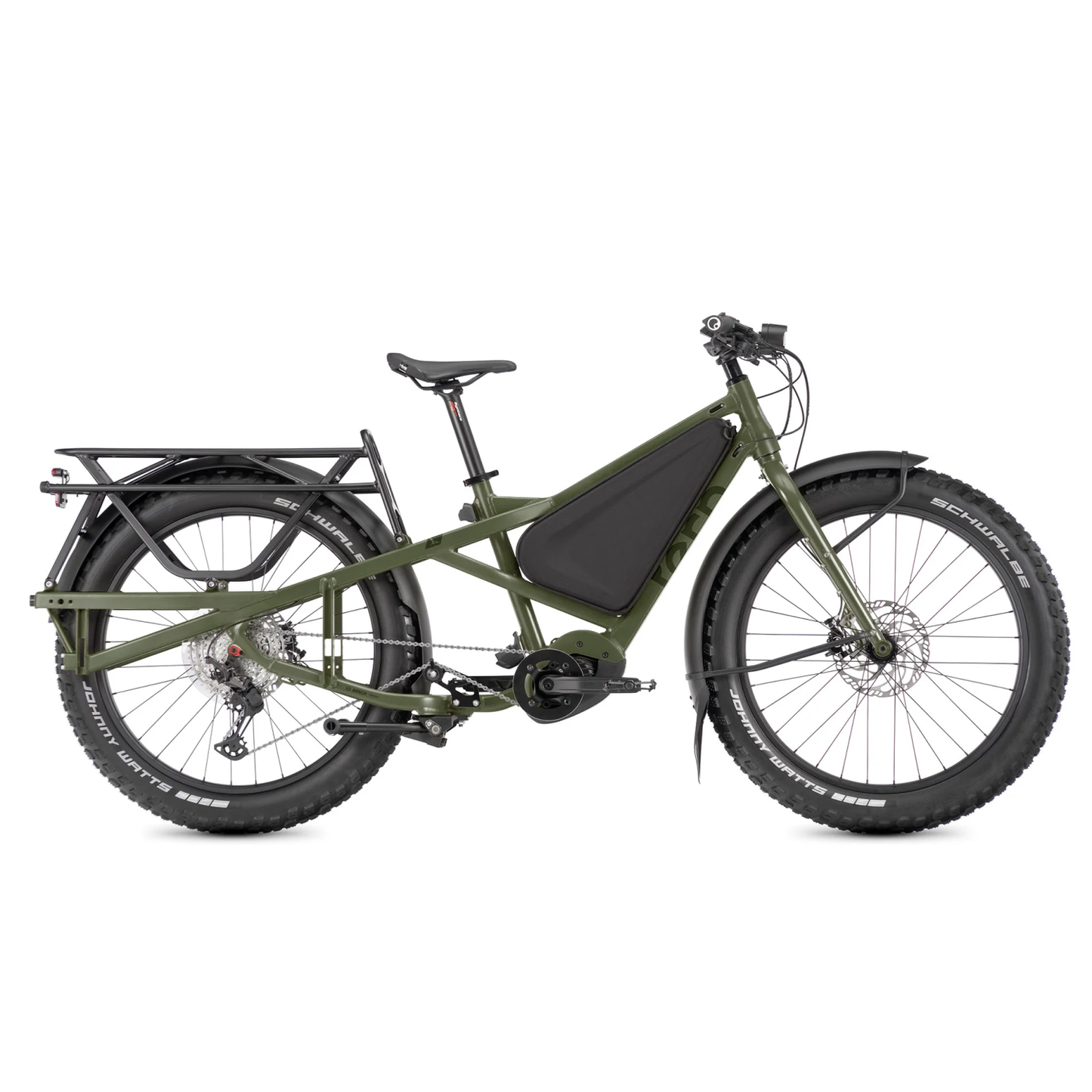

Tern Orox S12
The Orox adventure cargo bike defies extreme conditions to keep you going—no roads needed.
This tenacious trooper packs up to two XL batteries to power you through extended off-grid explorations, and redefines what’s possible by bike with a massive Max Gross Vehicle Weight of up to 210 kg (462 lb) for best-in-class cargo capacity.
Attributes
Attributes
- Country of Company: Taiwan
- Country of Manufacture: Vietnam
- Weight:
E-Bike Attributes
- Electric System Brand: Bosch
- Electric System Family: Bosch Smart System
- Electric System Model: Bosch Performance Line CX
- Motor Torque: 85Nm
- Speed: 32 km/h
- Battery Capacity: 725Wh
- Battery Range: Standard
Electric Bike Team Guides
- EBT Size Guide: Average, Biggish
- EBT Weight Guide: Heavy!
- EBT Step-thru Guide:
Regular price
$8,995.00 NZD
Regular price
$11,990.00 NZD
Sale price
$8,995.00 NZD
Unit price
per
Taxes included.
Shipping calculated at checkout.
1 in stock
Couldn't load pickup availability
Make an Enquiry
Make an Enquiry
#newbikeday: Any accessories purchased with a bike will automatically be discounted by 10%!
Shipping:
If you live outside of Auckland, we can send new bikes to your local bike shop who will fully assemble it for you to pick up.
Click & Collect
You can pick up 9am–6pm weekdays and 10am–4pm Saturdays. Most orders are ready within the hour.
About this product
The Orox adventure cargo bike defies extreme conditions to keep you going—no roads needed. This tenacious trooper packs up to two XL batteries to power you through extended off-grid explorations, and redefines what’s possible by bike with a massive Max Gross Vehicle Weight of up to 210 kg (462 lb) for best-in-class cargo capacity.
What makes it an S12?
- Shimano Deore XT 1 x 12-speed groupset for fast and precise shifting
- Custom 27.5" Schwalbe Johnny Watts all-terrain tires or 27.5" stud-compatible Vee Snowball tires take on even the toughest conditions
Orox highlights
- Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support
- Dual-battery system draws from up to two batteries for ultra-long range
- Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking
- Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
- Powerful and responsive Magura 4-piston hydraulic brakes
- EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
- Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)
SPECIFICATIONS
GENERAL INFO
SPEEDS:
1 x 12
WEIGHT:
M: 37.1 kg (81.8 lb)
GEAR INCHES:
18" - 95" (1.48 - 7.54 m)
FRAME SIZES:
M, L
DISTANCE: SEATPOST TO HANDLEBAR:
M: 61 - 66 cm (24 - 26 in) ;
L: 67 - 73 cm (26.4 - 28.7 in)
DISTANCE: SADDLE TO PEDAL:
M: 71 - 99 cm (28 - 39 in) ;
L: 76.5 - 104.5 cm (30.1 - 41.1 in)
SUGGESTED RIDER HEIGHT:
M: 155 - 185 cm (61 - 72.8 in) ;
L: 165 - 195 cm (65 - 76.8 in)
MAX GROSS VEHICLE WEIGHT:
On-road: 210 kg (463 lb) ;
Off-road: 180 kg (396.8 lb)
MAX RIDER WEIGHT:
130 kg (286.6 lb)
FRAME
FRAME:
Tern Orox, 6061-AL, patented design, EFBE tested and approved
FORK:
Atlas X, butted chromoly steel, EFBE tested and approved
COCKPIT
STEM:
Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
HEADSET:
FSA, 1.5", angular contact bearings
HANDLEBAR:
Level Nine, AL-7050, 800 mm, riser, eMTB approved
GRIPS/BAR TAPE:
Ergon
SADDLE:
Ergon SM, E-Mountain Sport, CrMo Rail
SEATPOST:
Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
SEATPOST CLAMP:
Tern Collar
BRAKES
FRONT BRAKE:
Magura MT5, 4-piston hydraulic disc, 203 mm rotor
REAR BRAKE:
Magura MT5, 4-piston hydraulic disc, 203 mm rotor
BRAKE LEVERS:
Magura MT5, hydraulic
BRAKE CABLE & HOUSING:
Magura, hydraulic
WHEELS
FRONT WHEEL:
Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
REAR WHEEL:
Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
FRONT HUB:
Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
REAR HUB:
Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard
SPOKES & NIPPLES:
Stainless steel
RIMS:
Tern Atlas X, custom doublewall construction
TIRES:
Vee Snow Ball, 27.5 x 4 or Schwalbe Johnny Watts 27.5" x 4"
TRANSMISSION
SHIFTER(S):
Shimano Deore, 1 x 12 spd
REAR DERAILLEUR:
Shimano Deore XT Shadow+
CRANKSET:
Tern Orox custom
CASSETTE/FREEWHEEL:
Shimano 10-51T, 12 spd
BOTTOM BRACKET:
Motor integrated
CHAIN:
KMC 12 spd, for eBike, EPT corrosion resistant coating
PEDALS:
MTB, non-slip
SHIFTER CABLE & HOUSING:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-SYSTEM
MOTOR:
Bosch Performance CX, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY:
725 Wh or 800 Wh, Bosch Dual Battery pack ready
DISPLAY:
Bosch Kiox 300 w/ LED remote, electronic bike lock
RANGE:
725 Wh: 84 - 146 km (52 - 91 mi); 800 Wh: 93 - 161 km (58 -100 mi); 1450 Wh: 168 - 292 km (104 - 181 mi); 1600 Wh: 185 - 322 km (115 - 200 mi)
CHARGER:
220V, 4A (EU); 100-240V, 4A (US)
CONNECT MODULE:
Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
BELLS & WHISTLES
BELL:
Pitch Plus, brass
TOOL:
Thru-axle lever, 4/5 mm, Torx 2.5 mm
CHAINGUARD:
Custom Bash Guard
PAINT PROTECTION:
ToughShield film on top and downtube, self-healing
KICKSTAND:
Atlas Kickstand XL Cargo ready
FRONT LIGHT:
Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
REAR LIGHT:
LED w/ G-Sensed Brake Light
FENDERS:
Aluminum, heavy duty construction, oversize stays, 27.5"
RACK(S):
Atlas X, 100 kg (220 lb) capacity
